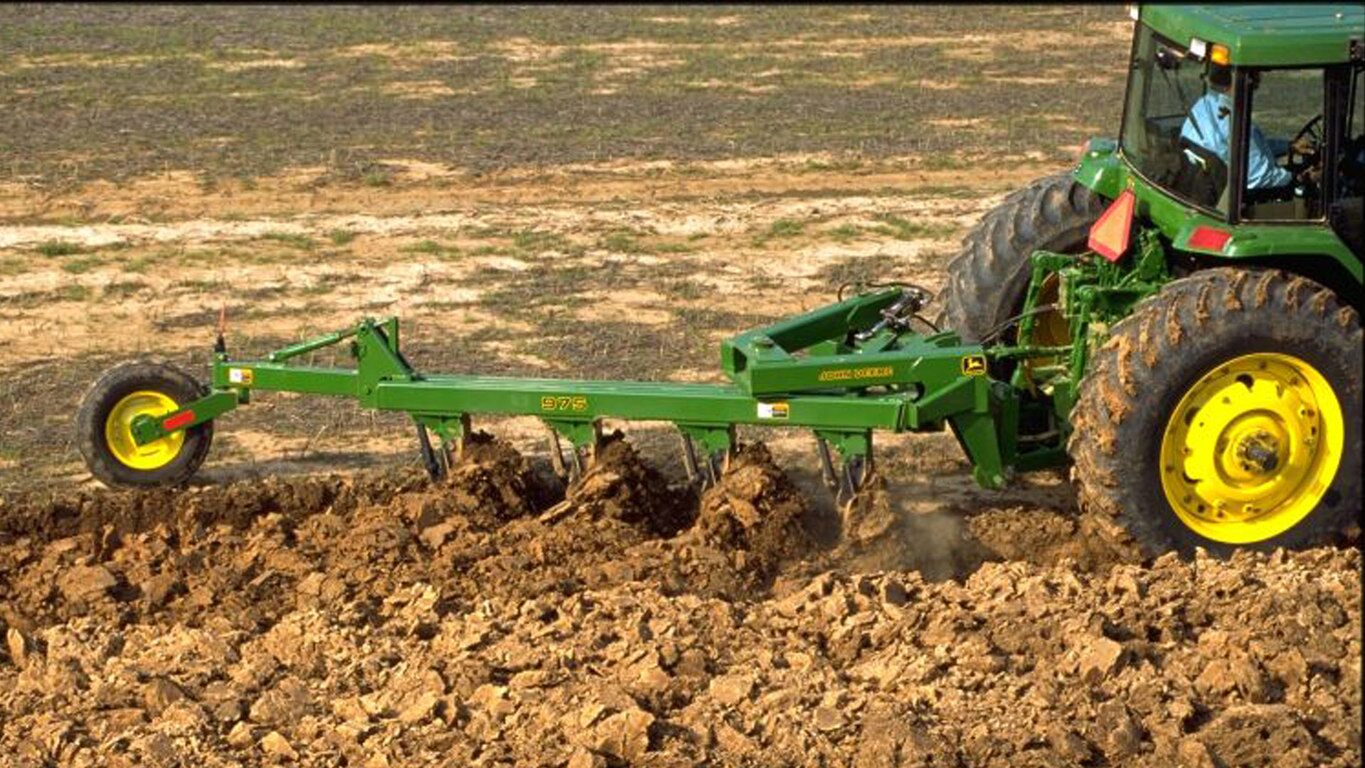

975 REVERSIBLE PLOW

Reversible Plow

  • Moldboard frame pivots with the bottoms
  • Safety-trip standards available to save time
  • Plastic moldboard and steel shins
  • Rear gauge wheel


Maintenance Plans
View Product Brochure



Features



975 mainframe 975 mainframe

All 975 Moldboard Plows use only one set of bottoms.



The moldboards are reversed laterally by a hydraulic cylinder that is standard equipment. There are several advantages of this design over traditional two-way rollover plows with two sets of bottoms:

  • Requires less 3-point hitch capacity
  • Requires less ballasting of the tractor front end
  • Eliminates initial cost and service requirements for one complete set of standards and bottoms
Reversing pin Reversing pin
#

The reversing pin is positioned at a 13.5-degree angle, instead of being straight up, for even plowing in both directions. The reversing pin does not require adjustments by the operator.

The V-style mainframe is made of 152-mm x 102-mm (6-in. x 4-in.) welded tubular steel to handle the stress of tough plowing and reversing action as well as tight turns:

  • 5-mm (3/16-in.) thick on three-bottom plows
  • 8-mm (5/16-in.) thick on four- and five-bottom plows
Integral in-furrow hitch Integral in-furrow hitch

Compatible with tractors equipped with Quik-Coupler, the integral hitch offers unexcelled maneuverability in turns and when parking in tight areas:

  • Tractor rockshaft lever controls the raising and lowering of the plow
    • Maximum plowing depth is 356 mm (14 in.)
Adjustable width of cut Adjustable width of cut

The width of cut on all 975 Moldboard Plows can be set at 406 mm or 457 mm (16 in. or 18 in.) by moving the standards to different bolt holes in order to:

  • Match the tractor horsepower to the soil conditions
  • Improve the residue-handling ability
  • Improve productivity
  • Maximize fuel efficiency

The underframe clearance is 813 mm (32 in.) to allow excellent material flow through the plow.

975 Moldboard Plow rear gauge wheel 975 Moldboard Plow rear gauge wheel

All 975 Moldboard Plows come with a rear gauge wheel included in standard equipment. The rear gauge wheel provides the following features:

  • Controls the plowing depth of the rear of the plow in rolling terrain
  • Stabilizes rear of the plow in soft soils
  • Adjustable through a full range of plowing depths
  • Designed for easy turnbuckle adjustment
  • Equipped with 6.70-15 tire to eliminate bulldozing in soft soils

Specifications


Compare the specifications of up to 4 models

Key Specs 975-reversible-plow
Current Model
Total width of cut
Option 10.63 to 0.91 m
2.67 to 3 ft
Option 21.2 to 1.4 m
4 to 4.42 ft
Option 31.6 to 1.8 m
5.25 to 6 ft
Option 42.0 to 2.3 m
6.5 to 7.42 ft
Plowing depth35.6 cm
14 in.
Horsepower required - Option 12-bottom: 37.3-52.2 kW
50-70 hp
Option 23-bottom: 52.2-70.8 kW
70-95 hp
Option 34-bottom: 70.8-104.4 kW
95-140 hp
Option 45-bottom: 96.9-123 kW
130-165 hp
Hitch
TypeCategory 3N, 3, or 2
SteeringIntegral, in-furrow
Yes
Integral, on-land
No
Semi-integral, on-land
No
Drawn, in-furrow
No
Drawn, on-land
No
Quick-coupler compatible
Yes
ReversibleType of reversing
Hydraulic cylinder
Yes
No. of bottoms
Option 12
Option 23
Option 34
Option 45
Option 5
Option 6
Option 7
Option 8
Total width of cut
AdjustmentManual
Option 1
0.63 to 0.91 m
2.67 to 3 ft
Option 21.2 to 1.4 m
4 to 4.42 ft
Option 31.6 to 1.8 m
5.25 to 6 ft
Option 42.0 to 2.3 m
6.5 to 7.42 ft
Option 5
Option 6
Option 7
Option 8
Weight (approximate)
Option 1408 kg
900 lb
Option 2544 kg
1,200 lb
Option 3771 kg
1,700 lb
Option 41,043 kg
2,300 lb
Option 5
Option 6
Option 7
Option 8
Clearances
Vertical81.3 cm
32 in.
Fore-aft
Standards
ShearboltStandard
Safety tripOptional
Spring resetNo
HydraulicNo
Coulters
Option 1
Option 2
Option 3
Bottoms
Option 1Plowing depth
35.6 cm
14 in.
Steel moldboard
Option 2Plastic moldboard
Option 3
Option 4
Option 5
Option 6
Frame
Option 1Thickness for 2- or 3-bottom: 15.2x10.2x0.478 cm
6x4x0.188 in.
Option 2Thickness for 4- or 5-bottom: 15.2x10.2x0.64 cm
6x4x0.25 in.
Option 3
Expandable
Horsepower required
Option 12-bottom: 37.3-52.2 kW
50-70 hp
Option 23-bottom: 52.2-70.8 kW
70-95 hp
Option 34-bottom: 70.8-104.4 kW
95-140 hp
Option 45-bottom: 96.9-123 kW
130-165 hp
Landing
Gauge wheel
Tires
Trashboards
Additional features

Accessories and Attachments

Bottoms

Steel shinsSteel shins

Steel shins are available as a field-installed option only.



The frog is pre-drilled at the factory to accept this attachment.



With this attachment, the steel shins will allow longer wear life when soil first comes into contact with the plow, but still offers the option of a plastic moldboard for sticky soil conditions.

Hydraulic Cylinder

Wheels and Tires

Rear gauge wheelRear gauge wheel

A rear gauge wheel can be ordered for plows not so equipped.

 Rear gauge wheels:

  • Control the plowing depth of the rear of the plow in rolling terrain
  • Stabilize the rear of the plow in soft soils
  • Provide easier turnbuckle adjustment
  • Are adjustable through a full range of plowing depths
  • Come with 6.70-15 tire to eliminate bulldozing in soft soils
