Specifications

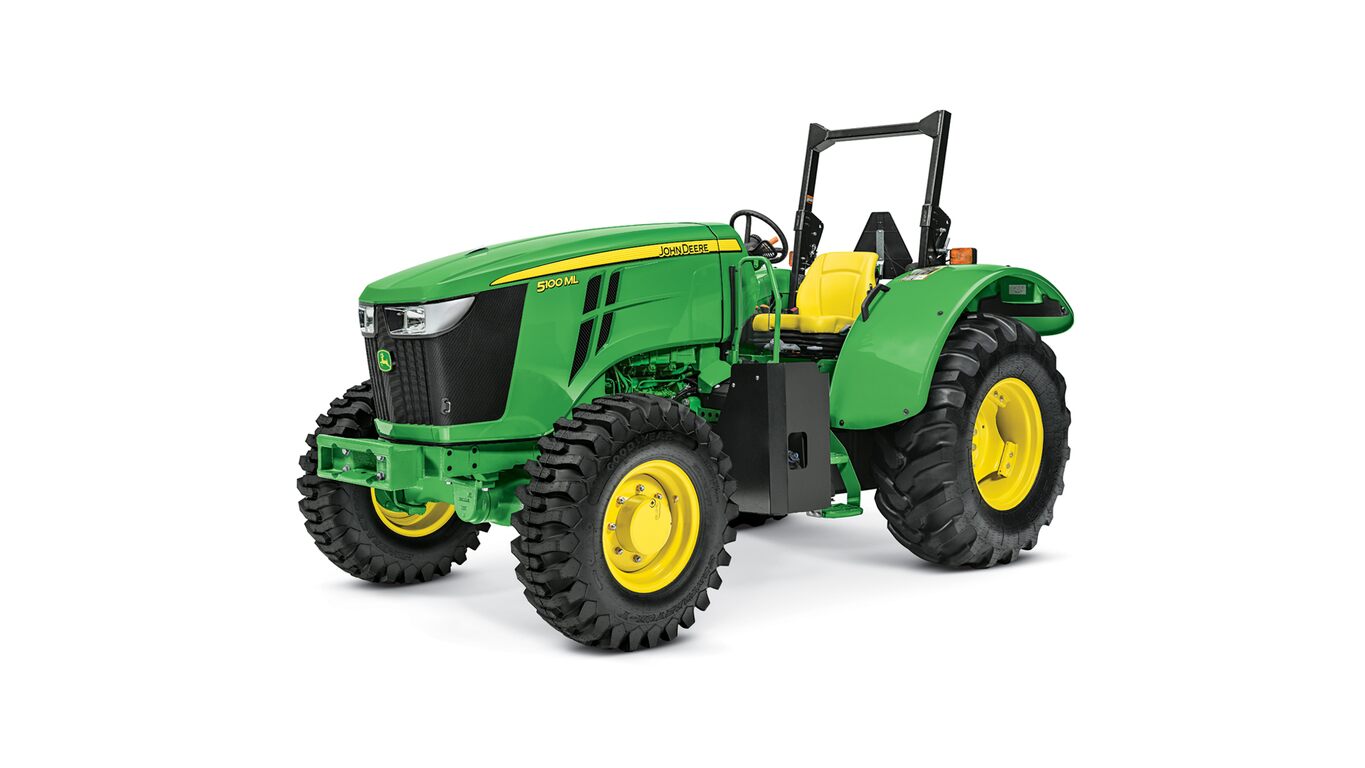

| Key Specs | 5100ml Current Model |
|---|---|
| Engine description | John Deere PowerTech™ 4045 engine |
| Engine displacement | 4 cylinders: 4.5 L 276 cu in. |
| Rated engine power | At 2,100 per ISO 97/68/EC: 75 kW 101.45 hp |
| Rated PTO power (hp SAE) | At 2,100 per SAE: 63 kW 85 hp |
| Transmission type | Standard: 16F/16R PowrReverser™ Optional: 16F/16R PowrQuad™ 16F/16R PowrQuad with creeper 32F/16R PowrQuad |
| Hydraulic pump rated output | Standard: 94 L/min 24.7 gpm Optional: 117 L/min 31 gpm |
| Rear hitch category (SAE designation) | Category 2 |
| Engine specifications | |
| Description | John Deere PowerTech™ 4045 engine |
| Engine family | LJDXL04.5315 |
| Aspiration | Turbocharged |
| Cylinders liners | Wet sleeved |
| Displacement | 4 cylinders: 4.5 L 276 cu in. |
| Engine performance | |
| Rated power | At 2,100 per ISO 97/68/EC: 75 kW 101.45 hp |
| Rated PTO power (hp SAE) | At 2,100 per SAE: 63 kW 85 hp |
| Transmission | |
| Type | Standard: 16F/16R PowrReverser™ Optional: 16F/16R PowrQuad™ 16F/16R PowrQuad with creeper 32F/16R PowrQuad |
| Reverser | Yes |
| Clutch; wet/dry | Wet |
| Creeper | 16F/16R PowrQuad with creeper |
| Hydraulic system | |
| Type | Standard: Open center Optional: Pressure-and-flow compensated (PFC) system |
| Pump rated output | Standard: 94 L/min 24.7 gpm Optional: 117 L/min 31 gpm |
| Available flow at a single rear SCV | Standard: 70 L/min 18.4 gpm Optional: 100 L/min 26.4 gpm |
| Number of rear selective control valves (SCVs) | Standard: three |
| Number of mid selective control valves (SCVs) | Zero; up to two |
| Joystick SCV control | Optional |
| Rear hitch | |
| Hitch draft control load sense type | Standard: Mechanical Optional: Electrohydraulic |
| Remote control valves available | Standard: three |
| Hitch category (SAE designation) | Category 2 |
| Maximum lift capacity behind lift points | Standard: 2223 kg 4900 lb Optional: 2565 kg 5654 lb Optional with PowrQuad: 3164 kg 6975 lb Optional with PowrQuad: 3569 kg 7868 lb |
| Sensing type | Top link |
| Drawbar | |
| Rear power take-off (PTO) | |
| Type | Standard: 540/540E Optional: 540/540E/1000 |
| Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1645 rpm 1000 at 2103 rpm |
| PTO actuation | Electrohydraulic |
| Front hitch | |
| Rear axle | |
| Type | Inboard planetary |
| Differential controls | Electrohydraulic |
| Axle type | Flanged |
| Brakes, type and control | Hydraulic wet disc |
| Front axle | |
| Tires | |
| Rear | 19.5L - 24 In 10PR R4 Bias |
| Wheel tread range | Front: 1299-1997 mm 51.1-78.6 in. |
| Turning radius with brakes | 3.34 m 11 ft |
| Turning radius without brakes | 3.8 m 12.5 ft |
| Tracks | |
| Steering | |
| Brakes | |
| Electrical system | |
| Operator station | |
| Rollover protective structure, OOS | Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Flat Gearshift location - console/floor Floor |
| Dimensions | |
| Wheelbase | 2350 mm 92.5 in. |
| Approximate shipping weight, Open;Cab | PowrReverser models: Open: 3764 kg 8298 lb PowrQuad models: Open: 3975 kg 8740 lb Cab: Not applicable |
| Weight | |
| Capacities | |
| Fuel tank | Standard: Open: 112 L 29.5 U.S. gal. Optional (PowrQuad models): 144 L 38 U.S. gal. |
| Diesel exhaust fluid (DEF) tank | 12 L 3.2 U.S. gal. |
| Serviceability | |
| Loaders | |
| Precision AG | |
| Miscellaneous |
