Equipment Image

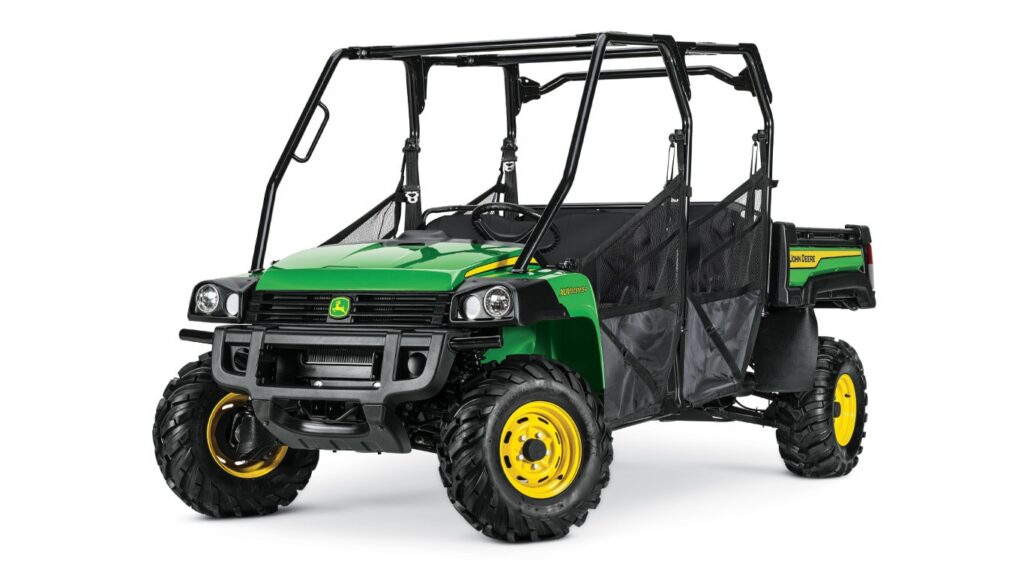

John DeereXUV825M S4 Crossover Utility Vehicle
Full-Size Crossover
Equipment Description
- Multi-passenger capability for four people
- Easier shifting, with integrated park position
- Electronic switch for instant 4WD engagement
- Improved power steering for smoother operation
| Engine - Displacement | 812 cc |
|---|---|
| Key Specs - Front suspension | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
| Brakes - Type | Front/rear hydraulic disc with twin piston front calipers |
| Features - Power steering | Yes |
| Engine - Type | 4-cycle gas, electronic fuel injection (EFI) |
| Drivetrain - Descent control | Yes |
| Suspension - Front | Fully independent dual A-arm with adjustable coils; 203 mm (8 in.) of travel |
| Drivetrain - Transmission | Continuously Variable Transmission (CVT) with clutch enclosure |
| Engine - Cooling system | Liquid |
| Drivetrain - Final drive | Park, high, low, neutral, reverse transaxle |
| Additional information - Country of Manufacture | U.S. |
| Features - Instrumentation | Digital display (gear position, system diagnostic light, speed, rpm, 4WD indicator, rear differential indicator, fuel level, coolant temperature, hour meter, miles, and service interval warning light) |
| Key Specs - Final drive | Park, high, low, neutral, reverse transaxle |
| Key Specs - Four wheel drive | Dash switch actuated four-wheel drive system |
| Dimensions / Capacities - Fuel capacity | 27.6 L 7.3 U.S. gal. |
| Key Specs - Fuel capacity | 27.6 L 7.3 U.S. gal. |
| Dimensions / Capacities - Wheelbase | 2896 mm 114 in. |
| Features - Color | Green and yellow, TrueTimber® KANATI® camo, olive and black |
| Features - Storage | Total: 45.1 L 11.9 gal. Front console tray with two cup holders: .9 L 2 gal. Rear console tray with two cup holders: 1.0 L .3 gal. Glove box: 7.6 L 2.0 gal. Under rear seat: 29.8 L 7.9 gal. Under hood: 5.8 L 1.5 gal. |
| Dimensions / Capacities - Width | 1574 mm 62 in. |
| Key Specs - Towing capacity | 680 kg 1500 lb |
| Dimensions / Capacities - Weight | With fuel and fluids: 953 kg 2101 lb |
| Dimensions / Capacities - Length | 3911 mm 154 in. |
| Brakes - Park brake | Park in-transmission, Optional factory-installed secondary foot operated with hand release |
| Dimensions / Capacities - Tread centers | 1305 mm 51.4 in. |
| Engine - Power | 38.8 kW 52 hp |
| Dimensions / Capacities - Payload capacity | 592 kg 1305 lb |
| Drivetrain - Four wheel drive | Dash switch actuated four-wheel drive system |
| Suspension - Rear | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
| Key Specs - Engine power | 38.8 kW 52 hp |
| Dimensions / Capacities - Ground clearance | 280 mm 11 in. |
| Features - Battery / Alternator / Power port | Battery: 12 V 480 CCA Alternator: 85 amp DC outlet: 12 V |
| Key Specs - Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
| Dimensions / Capacities - Height | 1903 mm 74.9 in. |
| Dimensions / Capacities - Towing capacity | 680 kg 1500 lb |
| Dimensions / Capacities - Hitch | Standard receiver: 5.1 cm 2 in. |
| Additional information - Date collected | 8-Jun-22 |
| Drivetrain - Traction assist | Limited slip front differential, Positive locking, switch actuated rear differential lock |
| Tires / Wheels - Rear | 27x11-R14 Maxxis Bighorn 2.0 extreme terrain radials on steel or alloy wheels 27x11-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
| Dimensions / Capacities - Cargo box capacity (weight) | 454 kg 1000 lb |
| Dimensions / Capacities - Cargo box dimensions | 1143 x 305 x 1320 mm 45 x 12 x 52 in. |
| Features - Seating | Black vinyl front and rear bench (four-passenger) |
| Tires / Wheels - Front | 27x9-R14 Maxxis® Bighorn® 2.0 extreme terrain radials on steel or alloy wheels 27x9-R14 Predator Heavy-Duty all-terrain radials on steel or alloy wheels |
| Key Specs - Cargo box capacity (weight) | 454 kg 1000 lb |
| Key Specs - Rear suspension | Fully independent dual A-arm with adjustable coils and sway bar; 229 mm (9 in.) of travel |
Featured List
- HP / Power Source: 52 hp* Gasoline
- Towing Capacity: 1500 lb
Featured Content
The full-size Gator™ XUV can haul 454 kg (1000 lb), so load it up with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.
Built-tough cargo box
Cargo box (shown with spray-in liner and optional taillight protectors)
Cargo box converted to flatbed
The cargo box resists dents, scratches, and rust because it is made from a tough composite material. You will have no problem securing loads with integrated tie bars and 14 tie-down points. You can also convert the cargo box to a flatbed when you need to haul big and bulky loads.
The cargo box measures 1143 mm (45 in.) long, 1320 mm (52 in.) wide, and 305 mm (12 in.) deep.
One-handed tailgate
Tailgate handle
Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.
Power lift
Deluxe cargo box unloading rocks
To save your back, the optional cargo box power lift empties heavy loads with the push of a button.
Full-size Gator™ XUVs are built to work hard and go the extra mile.
Heavy-duty frame
Underside view of XUV865M
Underside view of XUV825M S4
The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard front skid plate protects key components from damage.
Constant velocity boot protection
Constant velocity boot protection
Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.
Automotive-grade panels and optional protection packages
TrueTimber® KANATI camo XUV865R with optional Premium Protection Package
The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.
TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.
Large fuel tank fill opening
Full-size Gator™ XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.
Two-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.
Folding rear seat and under seat storage
Folding the rear seat to increase cargo space
Rear under seat storage
The rear seat of two-row vehicles folds forward providing additional cargo space. An under-seat storage compartment is also found under the rear seat.
Cup holders and glove box
Glove box (shown on XUV825M S4)
Front cup holders and center tray (shown on XUV825M S4)
Two front and two rear cup holders, glove box, and center tray are within reach.
Green and yellow XUV835R Signature Edition with included Ultimate Protection Package
Olive and black XUV865M with cab and optional brush guard
TrueTimber® KANATI camo XUV865R with optional Premium Protection Package
Desert sand, XUV835M Honor Edition with included brush guard
You will get noticed with the distinctive styling of full-size Gator™ XUVs. Available in four colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.
TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.
When you hop into the seat of a full-size two-row Gator™ Utility Vehicle, you will notice the front and rear bench seats accommodate yourself and three passengers.
Four-passenger seating with room to spare
Overhead view of XUV825M S4 (shown with half-doors)
Your entire crew will enjoy spacious seating. Passenger grab handles, hip restraints, and rear bar help everyone feel secure.
Roof, windshield, rear panel, poly door, and heater options
XUV825M S4 with rear panel, roof, and windshield, and poly cab doors
Roof, windshield, rear panel, and half doors attachments keep you dry, shaded, and out of the dust. Poly cab doors with roll down windows and heater attachments keep you warm all winter.
812-cc (49.6-cu in.) gasoline engine and drivetrain
The XUV835 and XUV825M S4 Gator™ Utility Vehicles are powered by an electronic fuel injection (EFI) gasoline engine with liquid-cooled, dual-overhead cams. This engine is designed to provide maximum power and fuel efficiency to muscle through tough jobs.
It also has plenty of torque in low range, and fast speeds in high range. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities.
You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.
Standard four-wheel drive with front and rear differential locks
Dash mounted four-wheel drive and rear differential lock switches
With standard four-wheel drive and differential lock, both instantly available with the flip of a switch, you can get where you are going.
Dual A-arm front and rear independent suspension
Rear suspension and ground clearance
The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with 284 mm (11.2 inches) of ground clearance.
Tires for any terrain
Terra Hawk all-terrain tire
Maxxis® Bighorn® 2.0 extreme terrain radial tire
Predator Heavy-Duty all-terrain radial tire
Full-Size Gator Utility Vehicles are available with three tire options:
- Terra Hawk all-terrain tires
- Tread pattern and wide footprint provide excellent traction with minimal impact on terrain
- Maxxis Bighorn 2.0 extreme terrain radial tires
- Radial construction provides shock absorption, allowing for a smoother ride
- Non-directional tread pattern provides predictable cornering and claws up roots and rocks
- Predator Heavy-Duty all-terrain radial tire
- Radial construction provides shock absorption, allowing for a smoother ride
- Flat profile increases footprint area, reducing ground pressure
- 8-ply rating delivers up to three times the life of Bighorn tires
Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.
Instrument display, shift lever, and switches (shown on XUV835R Signature Edition)
When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone.
Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.
When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.
