Equipment Image

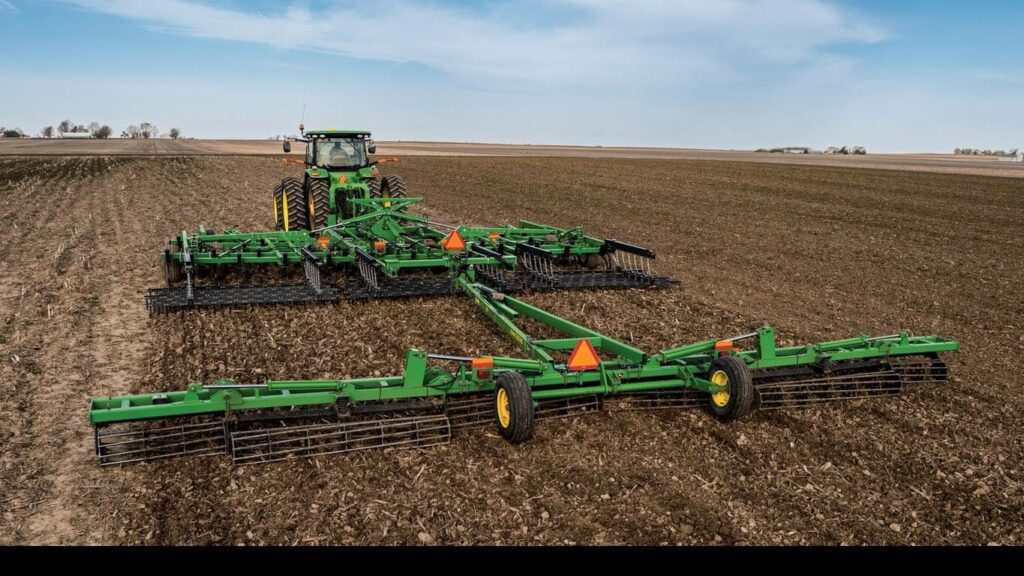

John Deere200 Seedbed Finisher
Agriculture
Equipment Description
- Provides excellent residue handling
- Safety features come as base equipment
- Grease fitting guard allow access for lubrication
- Guide to transport dimensions
| Type - Description | Seedbed Finisher |
|---|---|
| Fold - Type | 3-section; 5-section |
| Roller basket - Gang mounting | Spring |
| Tires, wheels, and spindles - Tires | 9.5L - 15FI Load Range D tires and wheels |
| Key Specs - Transport width | 4.37 to 5.87 m 14.33 to 19.25 ft |
| Working width - Option 2 | 9.14 m 30 ft |
| Transport width - Option 3 | 4.37 m 14.33 ft |
| Working width - Option 5 | 12.95-13.72 m 42.5-45 ft |
| Hitch - Description | Tube frame with adjustable clevis hitch, telescoping tongue, and storage stand: 7.62x15.2 cm 3x6 in. |
| Working width - Option 1 | 6.1 to 7.62 m 20 to 25 ft |
| Fold - mainframe - Option 4 | 5-section: 3.84 m 12.5 ft |
| Transport width - Option 1 | 4.37 m 14.33 ft |
| Key Specs - Working width | 6.1 to 13.72 m 20 to 45 ft |
| Roller basket - Spiraling rods | Ten rods per roller, diameter: 2.22 cm 0.875 in. |
| Frame (factory assembled) - Wing frame | Double truss tube welded frame: 10.2x10.2 cm 4x4 in. |
| Miscellaneous - Minimum recommended tractor horsepower | 0.75 kilowatt per 0.305 meter of working width One horsepower per foot of working width |
| Fold - mainframe - Option 1 | 3-section: 3.05 m 10 ft |
| Fold - mainframe - Option 3 | 5-section: 3.05 m 10 ft |
| Key Specs - Minimum recommended tractor horsepower | 0.75 kilowatt per 0.305 meter of working width One horsepower per foot of working width |
| Working width - Option 3 | 9.14 m 30 ft |
| Transport width - Option 5 | 5.87 m 19.25 ft |
| Frame (factory assembled) - Spring-cushioned gang | Tube: 7.62x7.62 cm 3x3 in. |
| Transport width - Option 2 | 5.87 m 19.25 ft |
| Transport width - Option 4 | 5.16 m 16.92 ft |
| Fold - mainframe - Option 5 | 5-section: 4.57 m 15 ft |
| Working width - Option 4 | 8.38-12.04 m 27.5-39.5 ft |
| Fold - mainframe - Option 2 | 3-section: 4.57 m 15 ft |
| Tires, wheels, and spindles - Spindles | Plug-in spindles with 6-bolt hubs, diameter: 5.72 cm 2.25 in. |
| Roller basket - Rollers | Internal web support, diameter: 35 cm 14 in. |
| Frame (factory assembled) - Mainframe | Double truss tube welded frame: 10.2x10.2 cm 4x4 in. |
Featured List
- Working Depth: float
- Residue Conditions: light
- Working Speed: 6 to 10 mph (10 to 16 km/h)
- Depth Control: N/A
- Spacing Option: N/A
- Required HP (PTO)/FT: 1 hp (2.45 kw/h) working width
Featured Content
Seedbed finisher in bean ground
200 Seedbed Finisher with 2330 Mulch Finisher
The 200 Seedbed Finisher has excellent residue-handling capability in secondary tillage.
The rolling baskets and spiraling rods separate soil from root balls and uprooted weed clumps, providing a level surface for planting.
The spiraling rods are spaced to produce a soil texture to thwart crusting, firm the soil, and preserve moisture in the seed zone for good seed germination and early root growth.
Each section of spiral rollers is spring cushioned to place firm pressure uniformly over uneven soil surface, facilitating good penetration and leveling.
Telescoping tongue
Turning radius
Tongue-length adjustments can be made with a simple pin adjustment on the 200 Seedbed Finisher. This makes it easy to create the desired turning radius.
Truss tube wing frame
200 Seedbed Finisher with 2330 Mulch Finisher
Heavy-duty 102-mm x 102-mm (4-in. x 4-in.) double-truss tube construction on the 200 Seedbed Finisher’s mainframe and wings provides added strength and down pressure for improved leveling and consistent rolling basket depth.
Bearing grease fitting guard
Small stones may occasionally get trapped inside the rolling basket and damage the grease fitting. The attached guard utilizes the bearing flange bolts and wraps around the grease fitting to minimize damage. The guard is contoured to allow good access for lubrication.
Dura-Flex bearings
200 Seedbed Finisher with 2330 Mulch Finisher
The rolling baskets on the 200 Seedbed Finisher are secured with Dura-Flex bearings featuring the following:
- Elimination of gang bolt, spacers, washer
- Triple-lip seal arrangement
- Self-alignment
- Elimination of internal bearing stress
In most applications, the weight of the base machine works extremely well with good leveling. However, for more aggressive action and more uniform weight distribution on the wings, two weight packages are available:
- The 136.4-kg (300-lb) weight package consists of 12 laser cut plates, six bolted to each wing end.
- The 272.7-kg (600-lb) weight package consists of 24 laser cut plates, 12 bolted to each wing end.
