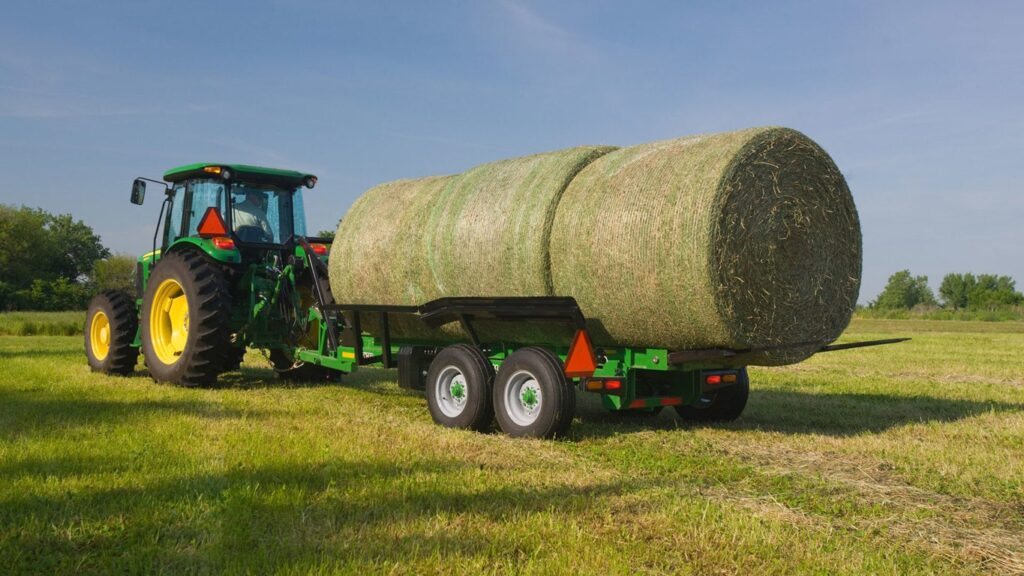

John DeereBC11 Series Bale Carriers
Agriculture
Equipment Description
- Adjustable bale arm fits top diameter of 60- to 72- inches
- Low-profile design improves visibility
- Push bar moves bales to rear
- Walking beam axles and tires provide smoother ride
| Hitch - Hole size | 3.2 cm 1.25 in. |
|---|---|
| Weight - Towing unit minimum weight | 7,257.5 kg 16,000 lb |
| Hitch - Type | Clevis |
| Tires - Quantity | Four |
| Dimensions - Overall machine height | 3.2 m 10.6 ft |
| Dimensions - Overall machine width | 3.6 m 11.9 ft |
| Weight - Loaded capacity | 10,886 kg 24,000 lb |
| Hubs and spindles - Hub capacity | 3,268.7 kg 8,000 lb |
| Weight - Weight | 3,788.9 kg 8,353 lb |
| Lighting, marking and safety - Jack | Standard |
| Bale capacity - Round bale length | 1.8 m 6 ft |
| Pusher - Travel stroke | 2.1 m 6.8 ft |
| Dimensions - Overall machine length | 8.5 m 28 ft |
| Set-up time - Labor hours | 1 |
| Hubs and spindles - Hub type | 8 Bolt |
| Lighting, marking and safety - Safety tow chain | Standard |
| Bale capacity - Bale quantity | Ten: 1.8x1.2 m 6x4 ft Eight: 1.8x1.5 m 6x5 ft |
| Lighting, marking and safety - Markings | SMV and reflectors |
| Bale capacity - Round bale diameter | 1.8 m 6 ft |
| Warranty - Machine | 1 year |
| Dimensions - Bed height | 1.4 m 4.5 ft |
| Lighting, marking and safety - Transport safety lights | Standard |
| Tires - Size | 32/15.5 x 16.5 14-ply Galaxy Tires on 12x16.5 Rims |
| Hubs and spindles - Spindle diameter | 7 cm 2.75 in. |
Featured List
- Towing Unit Minimum Weight : 13,300 lb. (6,033 kg)
- Loaded Capacity: 20,000 lb. (9,072 kg)
- Bale Capacity: 6 to 8 bales
Featured Content
Model BC1108 bale push bar
Model BC1110 bale push bar
The bale push bar moves the bales rearward after they are loaded, making room for the next bale.
Bale loading arm on the BC1108
BC1110 bale loading arm
Frontier™ bale carriers have an adjustable bale arm to fit different bale sizes:
- BC1108 has a maximum bale diameter of 152.4 cm (60 in.)
- BC1110 has a maximum bale diameter of 177.8 cm (70 in.)
Model BC1110 has a bale loading arm designed for improved machine performance.
Great visibility when loading bales
Bale carrier when fully loaded
Frontier™ bale carriers have been designed with a low profile to improve rearward visibility when loading or moving bales.
The low-profile design provides increased safety for operators.
Tandem tires shown on BC1104 and BC1108
Flotation tires shown on BC1110
Walking beam axles, tandem tires, and larger flotation tires create a smoother ride on uneven or rough terrain.
