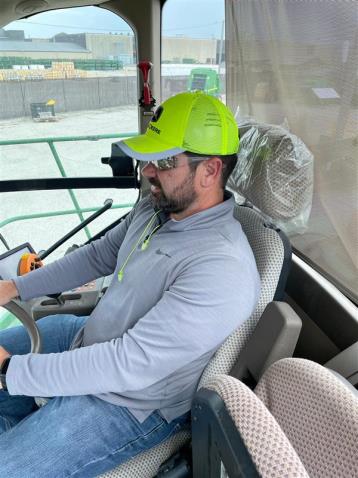

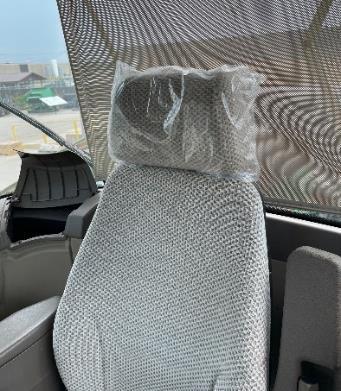

John Deere Aftermarket Parts Marketing is excited to announce that aftermarket installed headrests are available for compatible seats in Worldwide Harvester Cabs (WWHC). Compatibility information is below. Aftermarket headrests are available in cloth and leather options, and both can tilt forward and rearward.
| Part# | Description | MDP | Suggested US List | CDP | Suggested CA List |
|---|---|---|---|---|---|
| AXE96856 | Leather Headrest | 552TY95 | $441.12 | 634TY09 | $611.39 |
| AXE96857 | Cloth Headrest | 792TY67 | $399.69 | 163TY71 | $553.97 |
| AL210444 | Guide Kit, Backrest Extension* | 493TY3 | $49.99 | 424TY6 | $69.28 |
Compatibility:
Aftermarket Headrests for Harvester machines are compatible with S, W, and T Series Combines, SPFH, W200M & W235M windrowers, Sugar Harvesters, CS690 cotton stripper, and CP690 cotton picker. For exact compatibility on S-Series combines, please see the below chart. You can find base codes in Warranty or Parts ADVISOR by inputting the customer’s machine serial number.
| S600 | ||||||
|---|---|---|---|---|---|---|
| Model | MY12 | MY13 | MY14 | MY15 | MY16 | MY17 |
| S/N | 745101-755000 | 755001-765000 | 765001-775000 | 775001-785000 | 785001-795000 | 795001-800000 |
| Base Code Cloth | X | X | X | 1220 | 1220/21 | 1221 |
| Base Code Leather | 1221 | 1222 | 1222 | |||
| S700 | |||||||
|---|---|---|---|---|---|---|---|
| Model | MY18 | MY19 | MY20 | MY21 | MY22 | MY23 | MY24 |
| S/N | 800001-805000 | 805001-810000 | 810001-820000 | 815001-820000 | 820001-825000 | 825001-830000 | 830001-834999 |
| Base Code Cloth | 1223 | 1223 | 1223 | 1223 | 1223 | 1020 | 1020 |
| Base Code Leather | 1224 | 1224 | 1224 | 1224 | 1224 | 1021 | 1021 |
